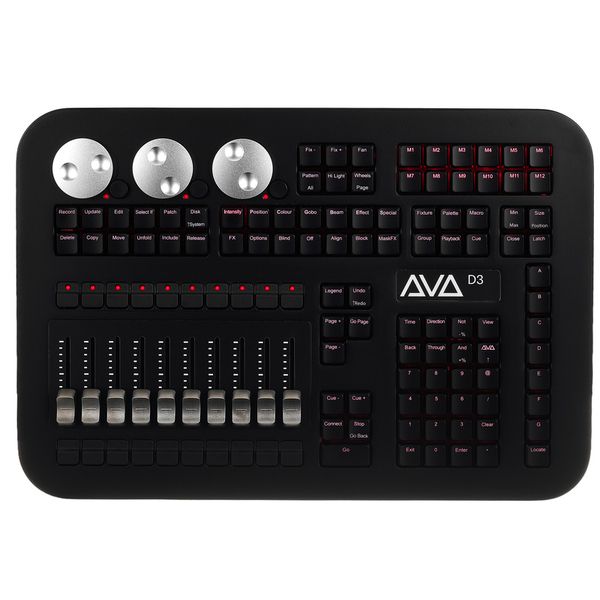

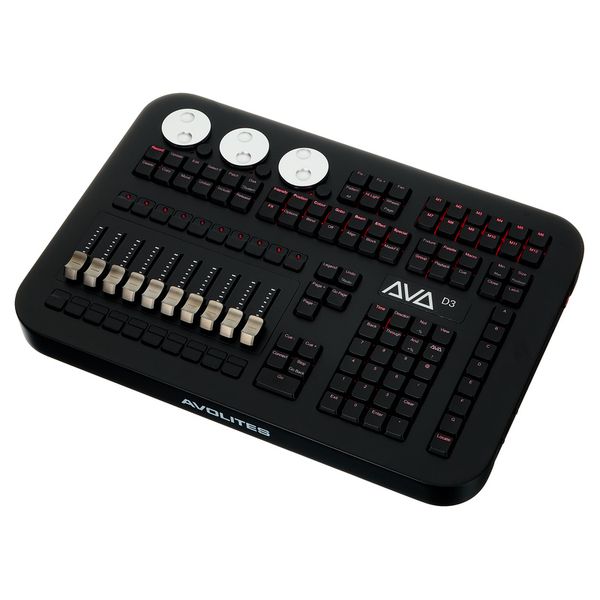

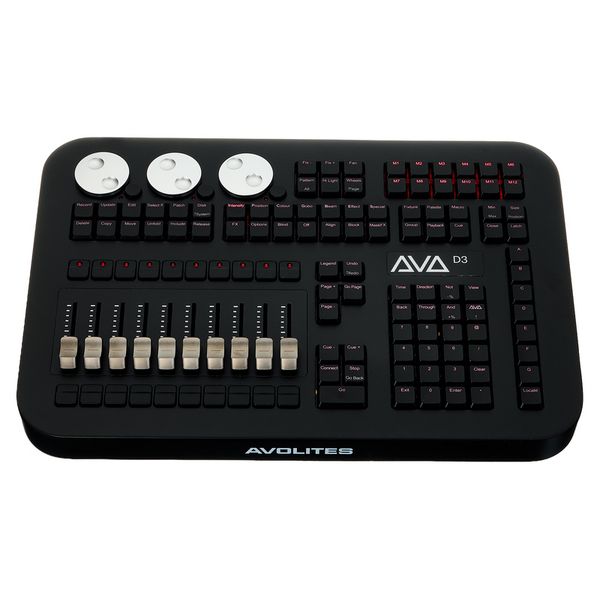

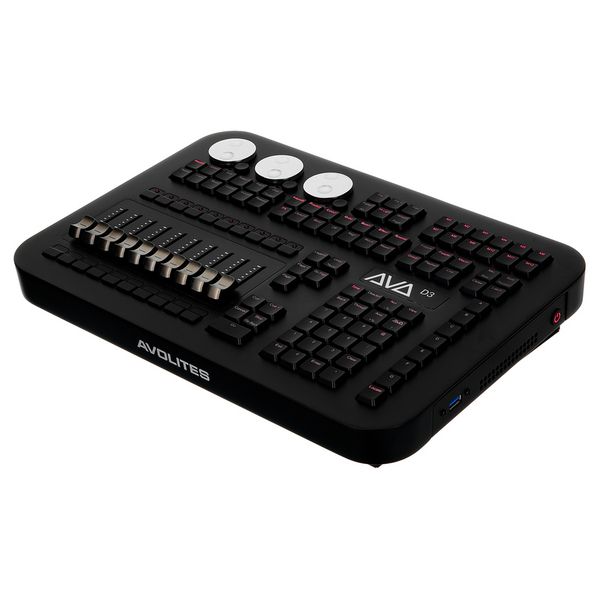

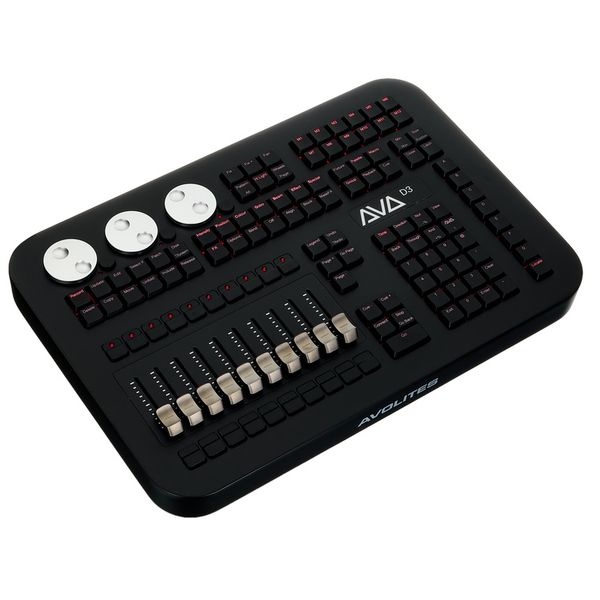

Avolites D3-010

Stand-Alone Lighting Console

• Natively supports 8 DMX universes
• 10 playback faders
• 3 encoder wheels
• 12 macro buttons
• Compact Avolites key layout

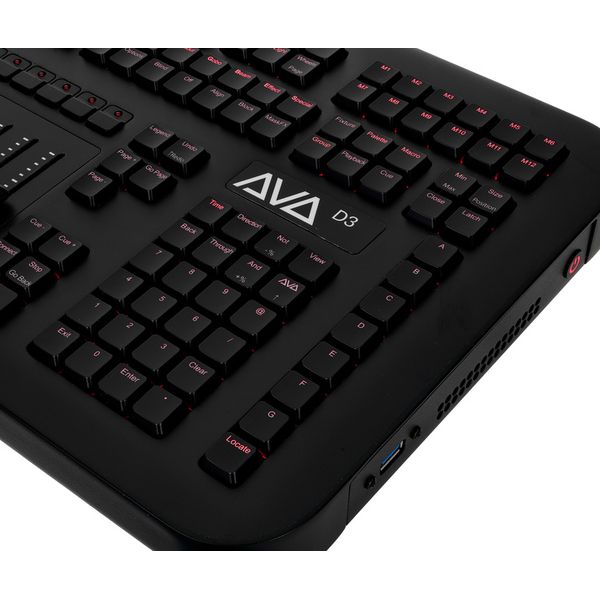

• USB-C and USB-A ports
• Avolites Titan & Capture Engine
• 24 universes (12,288 channels)
• Unlimited number of spotlights
• TitanNet Multi-Console Session
• ACN, Art-Net and Art-RDM streaming
• CITP
• SMPTE LTC

Technical specifications:

• 1 connection for optional external display up to 4K (UHD) (USB-C / DisplayPort)

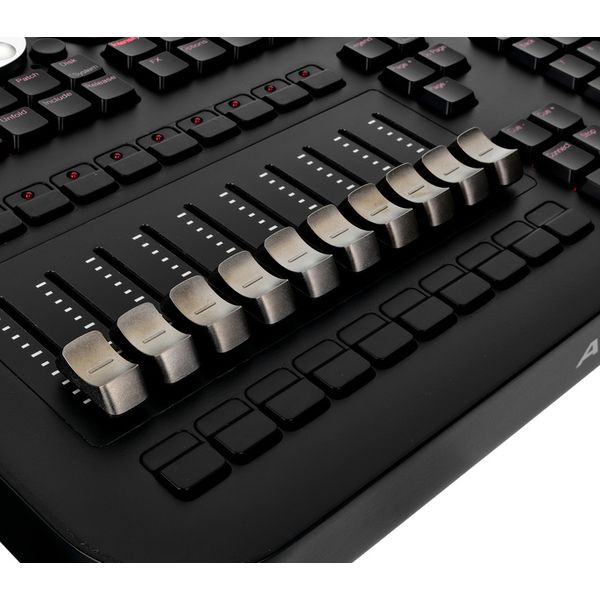

• 10 playback faders (60 mm)
• 20 C&K flash buttons with custom caps
• 76x backlit Cherry MX low profile programming/setup keys
• 3x backlit Cherry MX low profile playback paging buttons
• 5x backlit Cherry MX low-profile playback control keys, including double-width Go key
• 12x backlit Cherry MX low profile macro/executor keys

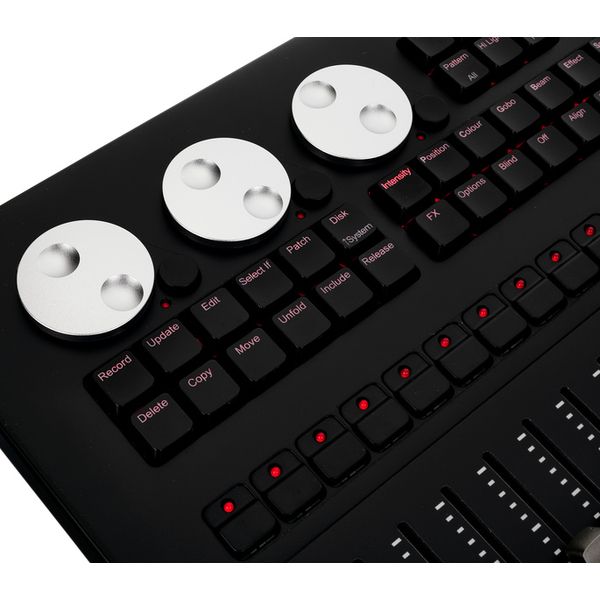

• 3x high-resolution metal Avo attribute encoders with selection buttons
• Support for D3 Wing, T3 Wing or Titan Mobile Wing
• Unlimited support for D3 Touch
• iOS and Android mobile app (‘Titan Remote’)

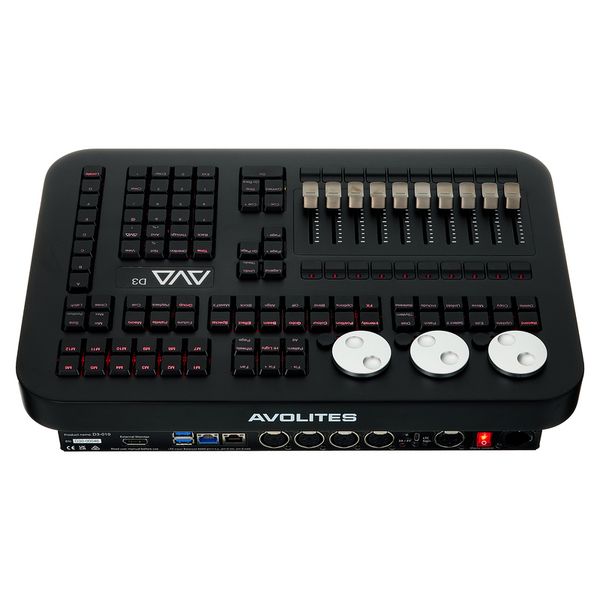

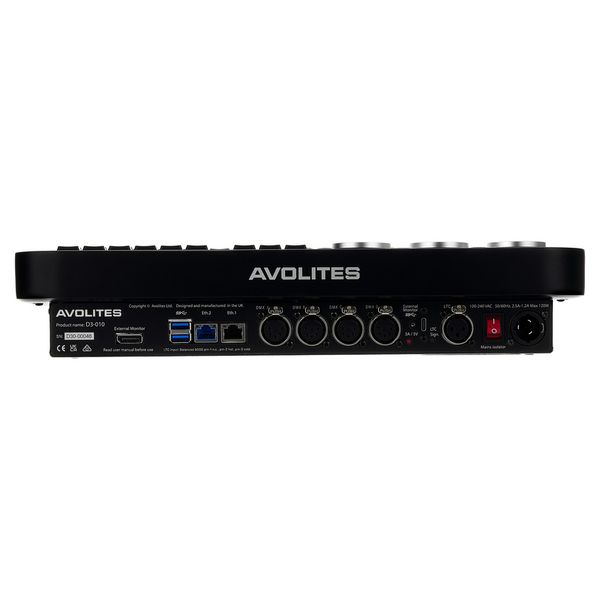

• 4x DMX connectors: Neutrik 5-pin XLR
• 2 EtherCON (gigabit ethernet)
• 1x SMPTE LTC connector: Neutrik 3-pin XLR
• 1x audio input: Neutrik 3-pin XLR
• Dimensions (W x D x H): 398 x 78 x 275 mm
• Weight: 4.6 kg
