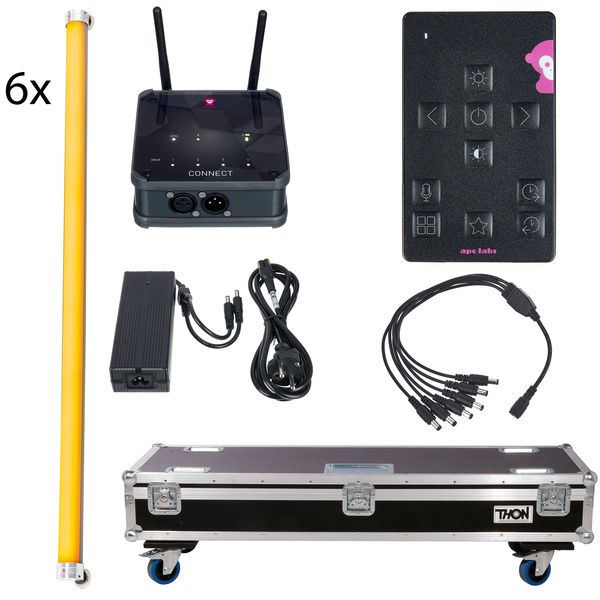

Ape Labs Neon Tube Single RGBWW Bundle

Bundle offer comprising

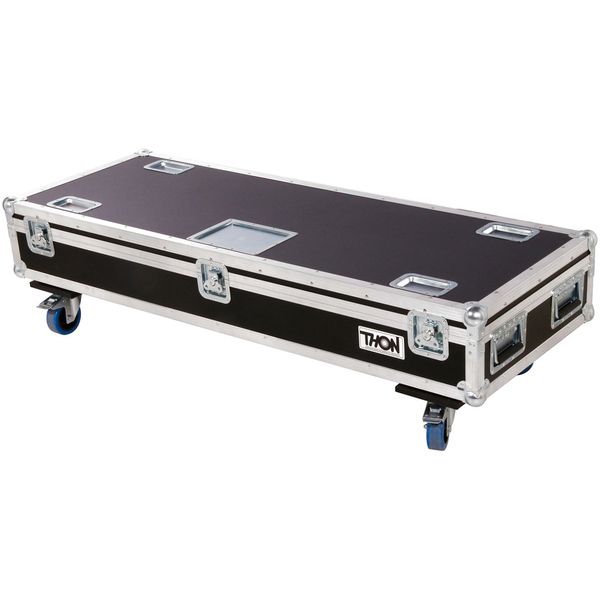

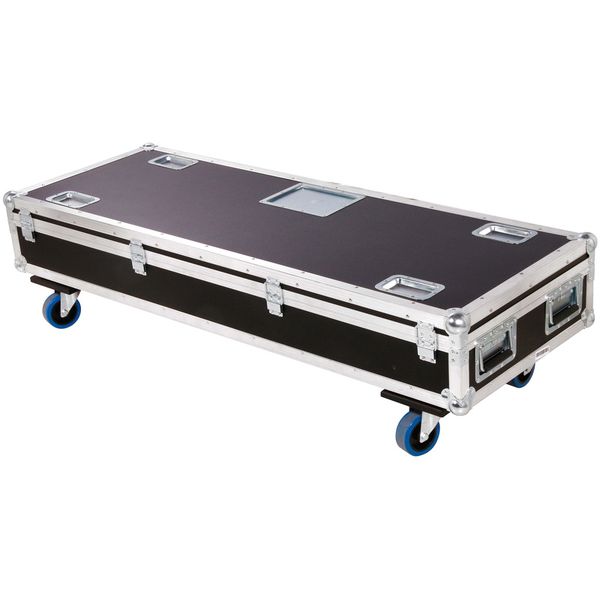

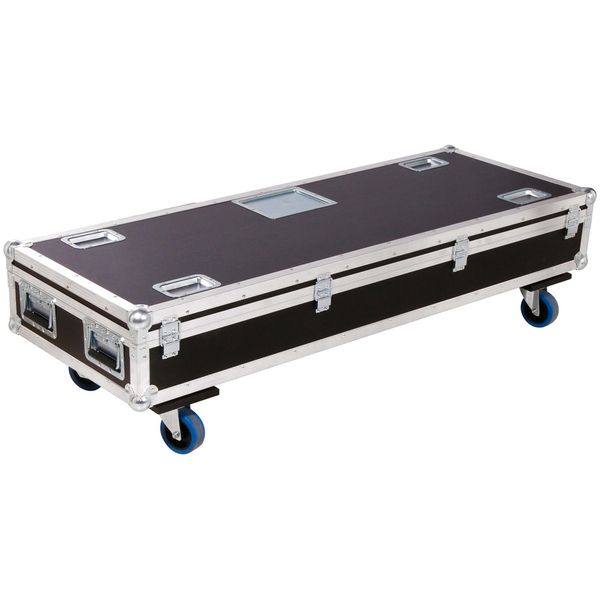

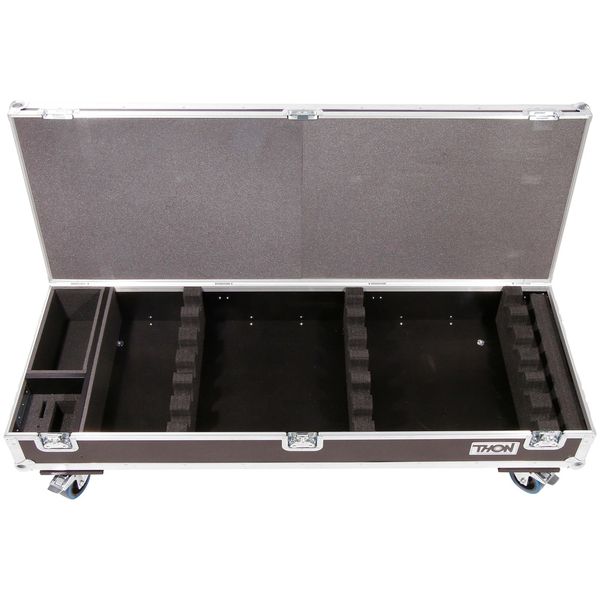

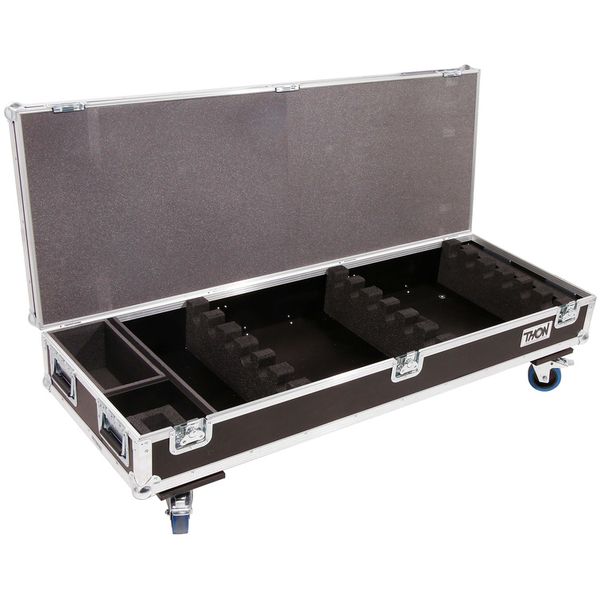

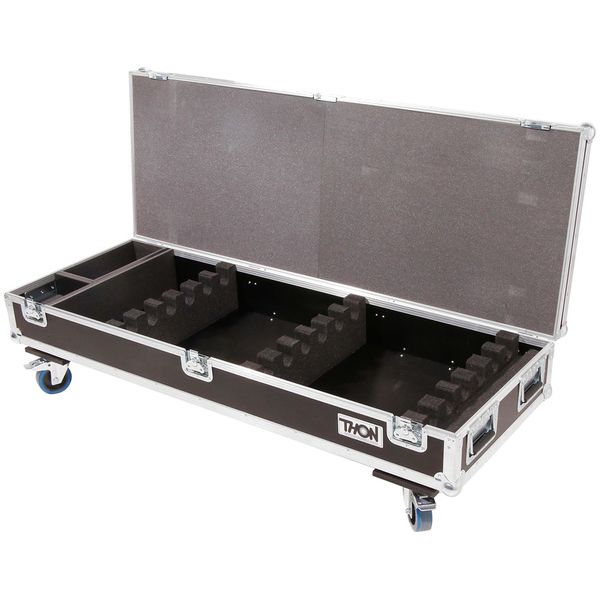

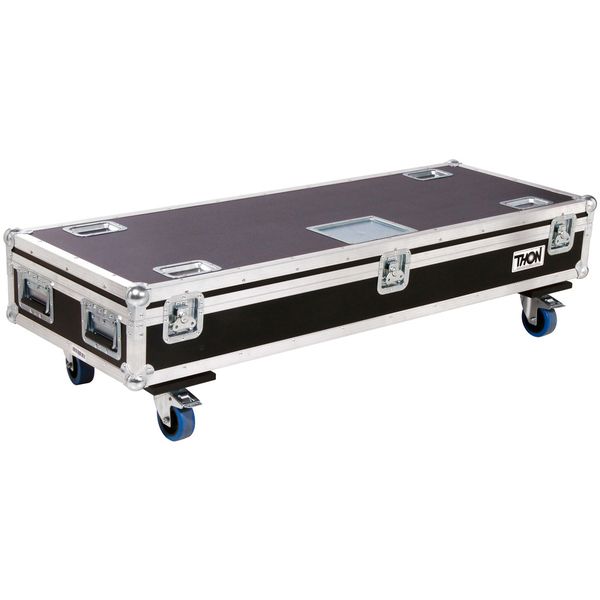

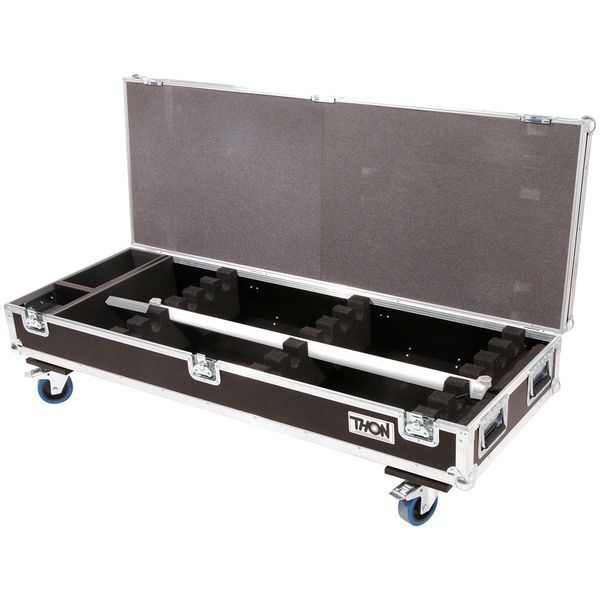

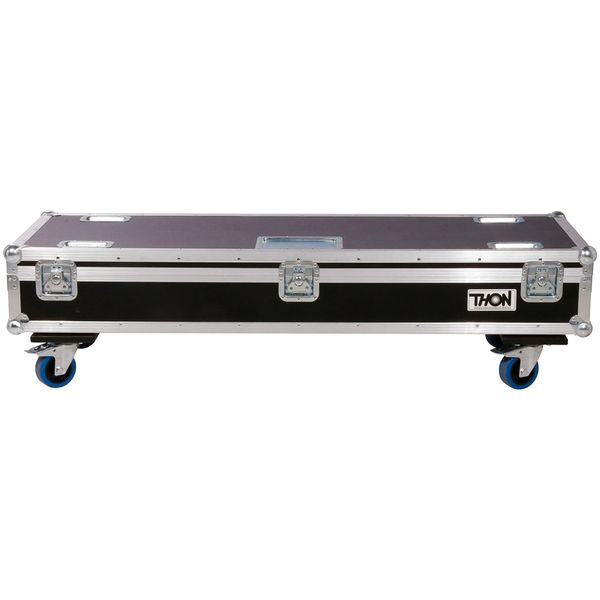

Thon Case Ape Labs Neon Tubes 6in1

Road Case

• Suitable for 6x Ape Labs Neon Tubes, 1x ApeLabs connect, antennas and 1x remote control
• Made of 6.8 mm polyboard
• Aluminium edge: 30 x 30 mm
• Four medium-sized L-corners
• Four medium-sized folding handles
• Two medium-sized butterfly latches
• Four locking hinges
• Four medium-sized, rounded ball corners
• Four medium-sized, rounded ball corners with L-corner

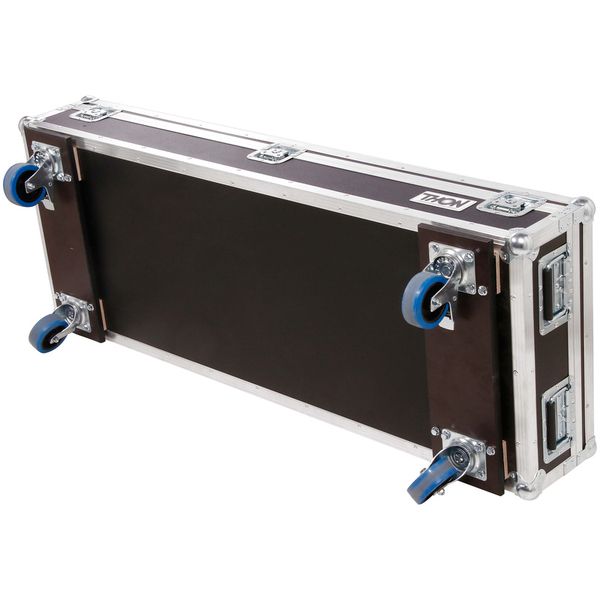

• Four wheel recesses
• One label dish in the lid
• Foam padding
• With 15 cm accessory compartment (padded)
• Dimensions (W x D x H): 1474 x 553 x 380 mm
• Weight: 25 kg
• Colour: Black
• Made in Germany

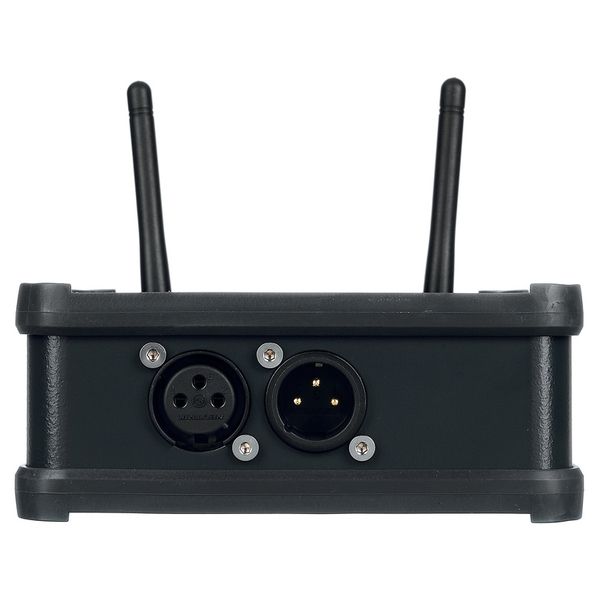

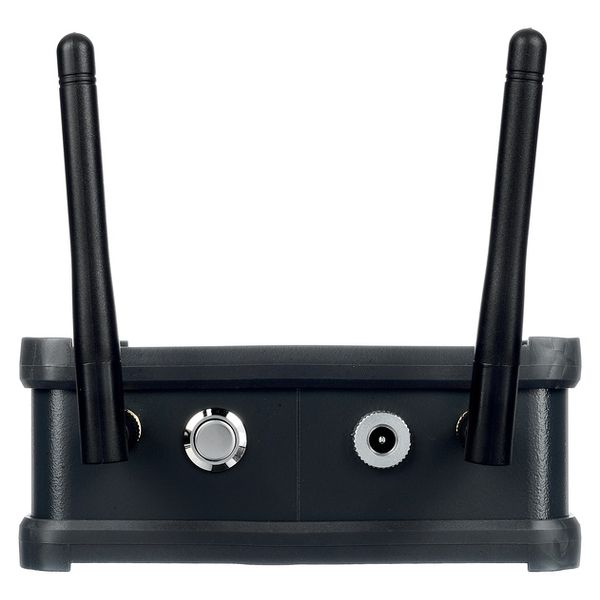

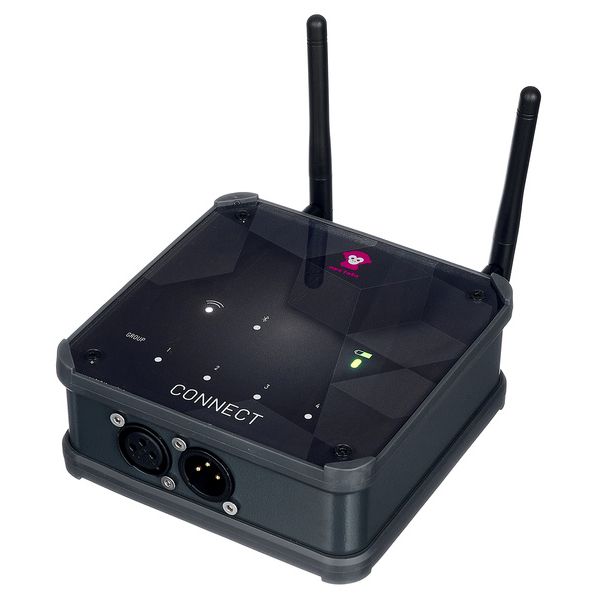

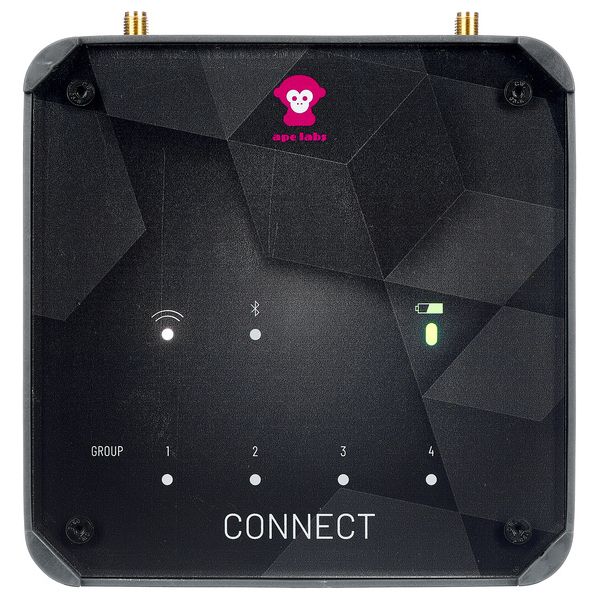

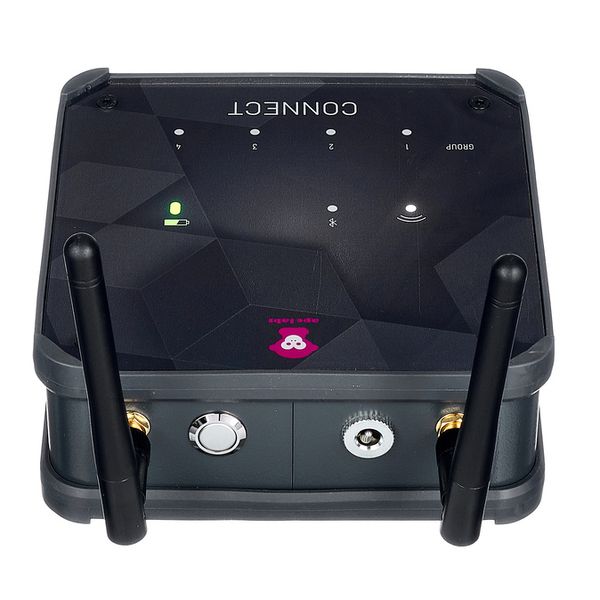

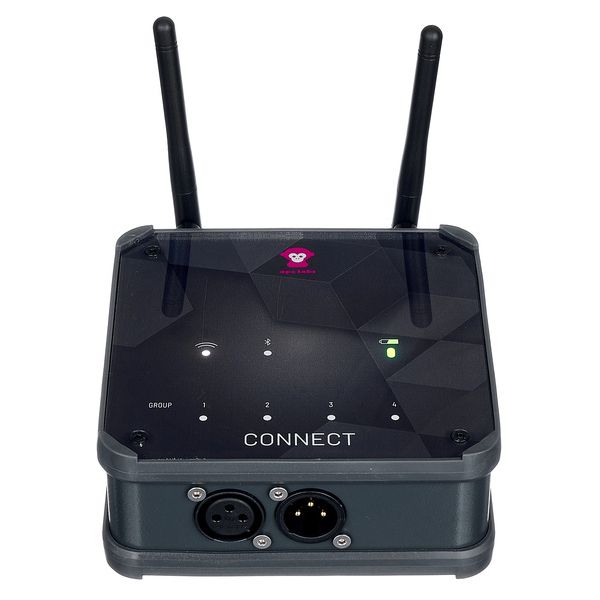

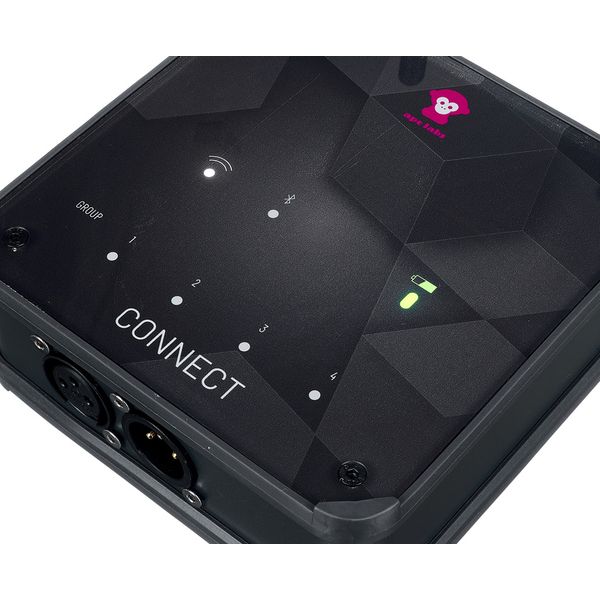

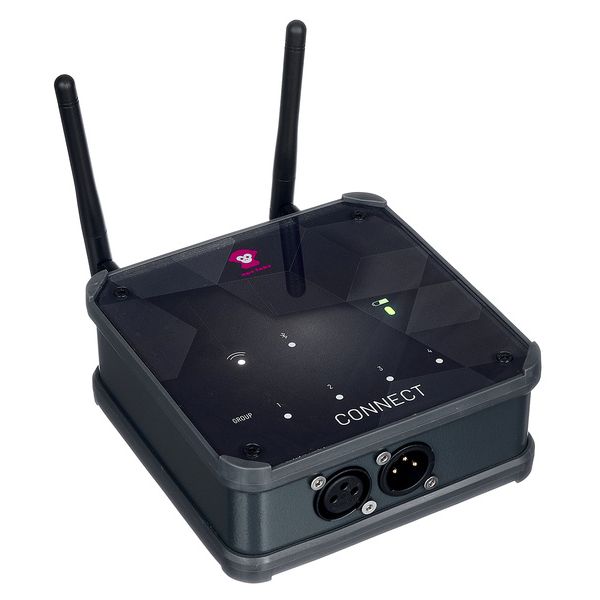

Ape Labs Connect Grey

Wireless DMX Interface

• For controlling Ape Labs products via smartphone, Wireless-DMX and KNX
• Built-in rechargeable battery with a runtime of up to 50 hours per charge
• Two Connect units can be connected as a wireless DMX system, acting as a transmitter and receiver
• Up to four Connect units can be operated in parallel to control up to four DMX channels
• Performing firmware updates on Ape Labs devices and Connect via the app
• DMX input and output: XLR 3-pin
• Powered via the supplied mains adapter or the built-in battery
• Made from aluminium and galvanised steel
• Dimensions: 12.5 x 4.8 x 4.8 cm
• Weight: 0.72 kg
• Housing colour: Anthracite grey

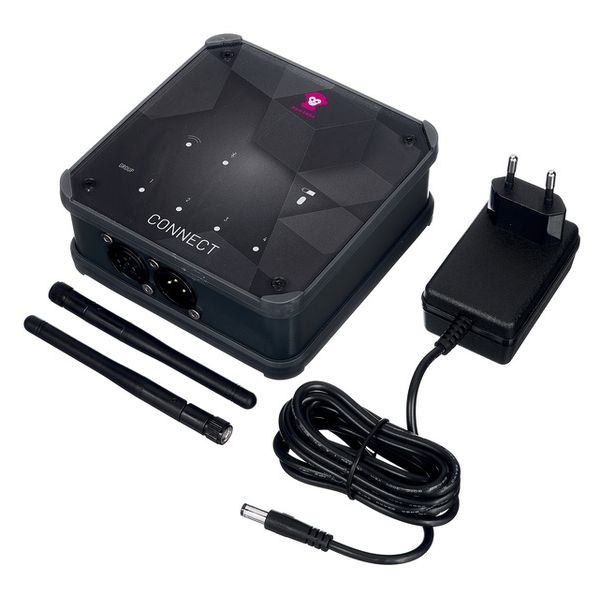

Delivery contents:

• 1x Connect
• 1x Ape Labs PSU power supply unit, 27 watts
• 2 x 2.4 GHz antennas

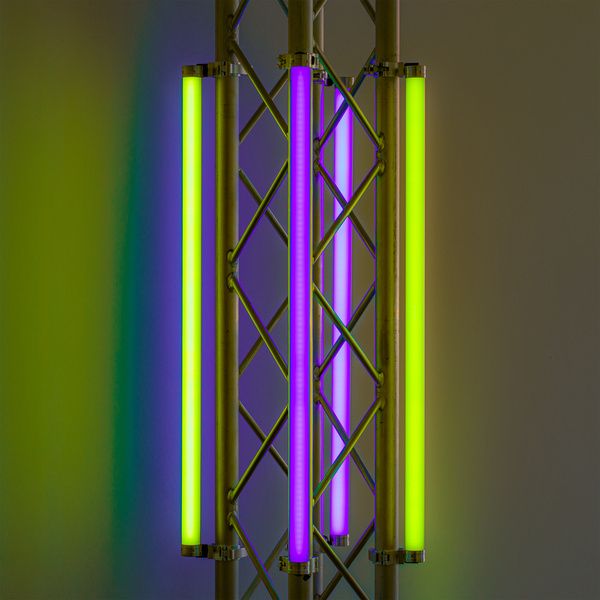

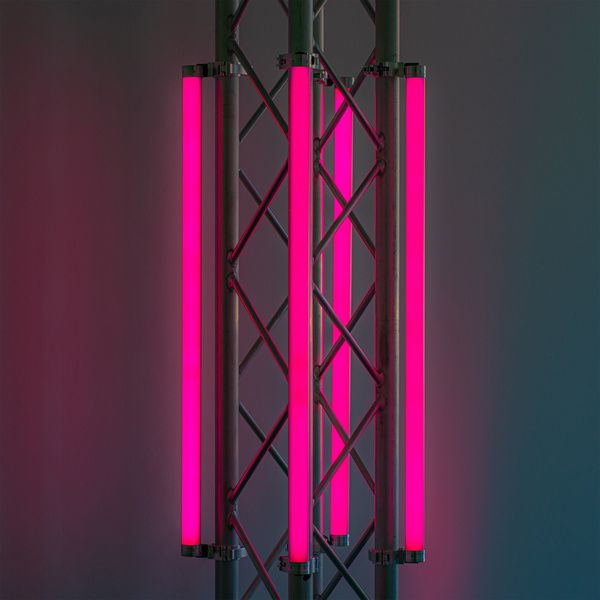

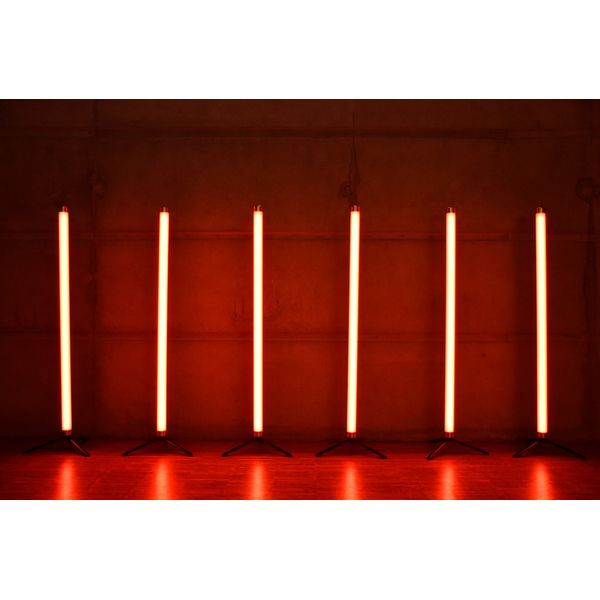

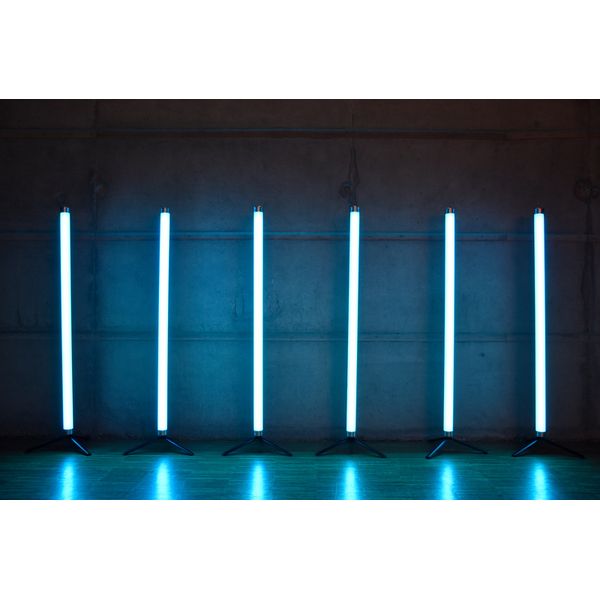

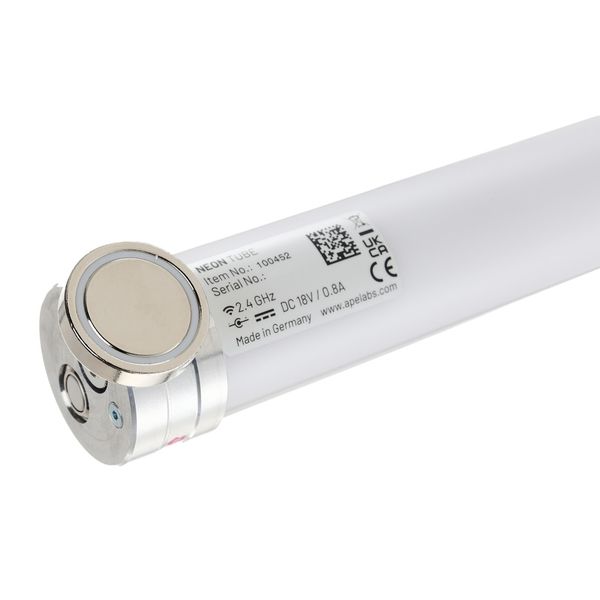

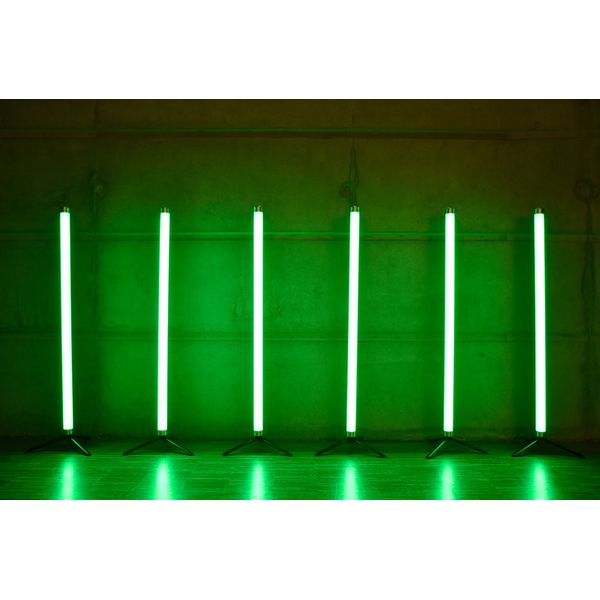

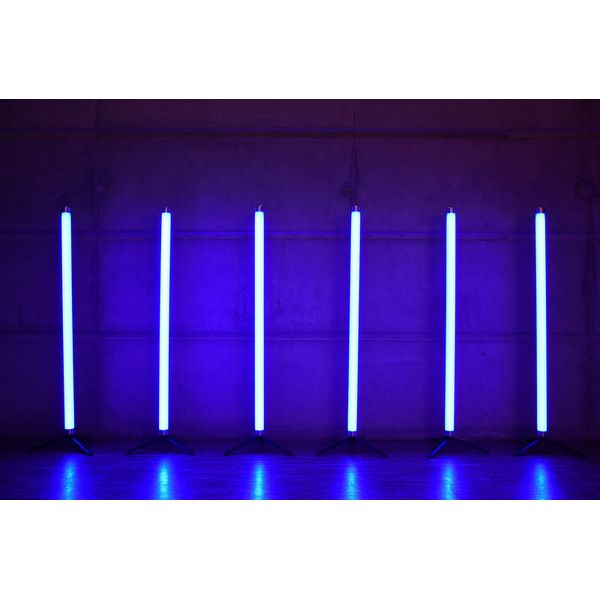

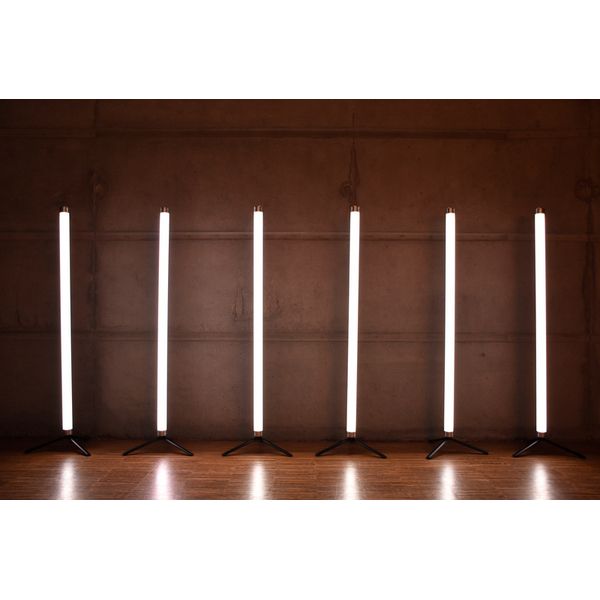

6x Ape Labs Neon Tube Single RGBWW

Rechargeable LED RGB + Warm White Tube Light

• Light tube for illuminating rooms or for use as a light for indoor and outdoor use
• IP protection rating: IP65
• Length: 100 cm
• Colour temperature: warm white, 2700 K
• Homogeneous light pattern without pixel dots
• Full flexibility in colour, brightness, effects and programs
• Colour rendering index: CRI 90
• Dispersion angle: 180º
• Battery operation or continuous operation on mains power possible
• Battery life: approx. 15 hours
• Controllable via remote control, smartphone app, wireless DMX, Smarthome KNX
• PWM (LED refresh rate) adjustable via smartphone app (500 Hz to 4,000 Hz)
• Fanless
• Charging voltage lamp: 16 - 19 V
• Operating voltage lamp: 12 V
• Battery type in lamp: Ni-MH 43.2 Wh
• Power consumption of the lamp during charging: 1 A
• Automatic signal repeater from lamp to lamp
• Smartphone app for IOS & Android via CONNECT Art. 522043 or Art. 522044: approx. 1200 metres range
• Wireless DMX / KNX via CONNECT (approx. 1200 metres range)
• DMX: 4 channel mode 8 bit, 7 channel mode 8 bit, 8 channel mode 16 bit
• Radio: 2,400 - 2,485 MHz
• Max. 20 dBm ~ 100 mW (EIRP*)
• Further functions: Music mode, pairing (coupling) of all Ape Labs relevant devices for a secure and stable wireless connection and cloud-based storage of personal lamp settings
• Free software updates for lights, CONNECT and smartphone apps
• Regular software updates with new functions and ideas from the Ape Labs community
• Tube material: Polycarbonate
• Flexible attachment using neodymium magnets – 2 pieces, can be removed using screw thread
• 5 x M6 threads on the end covers
• Aluminium end covers
• Dimensions (L x W): 100 x 4 cm
• Weight: 1.2 kg
• Includes M6 safety eyelet
• Made in Germany

Suitable accessories (not included):

• Remote control (approx. 50 metres range): Art. 522045 or Art. 522038 (not included)

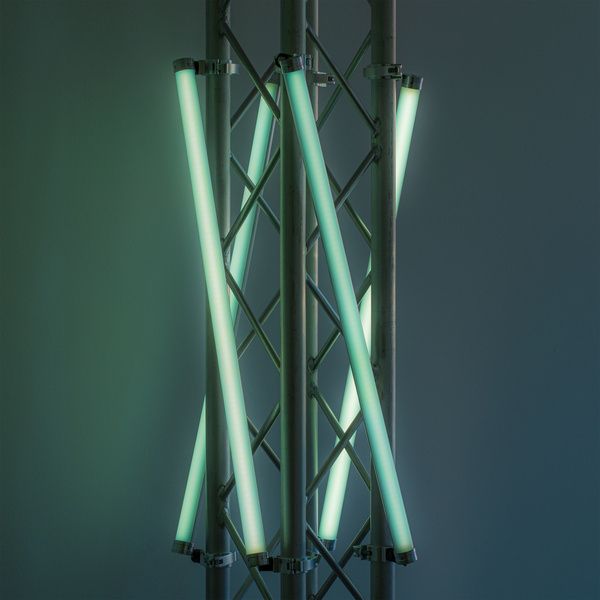

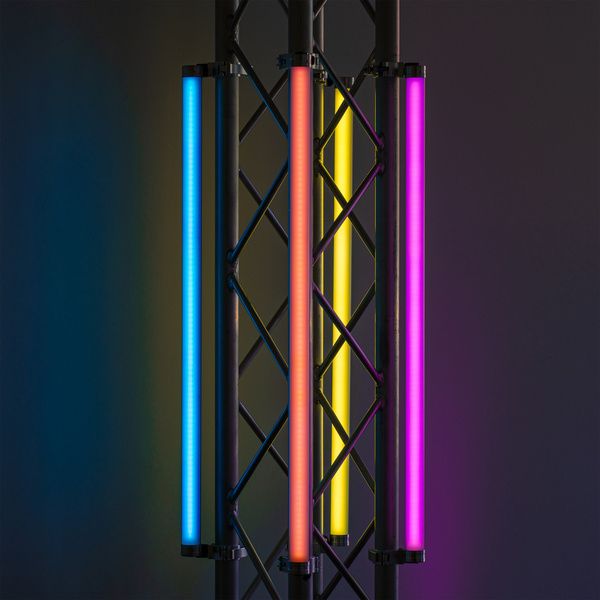

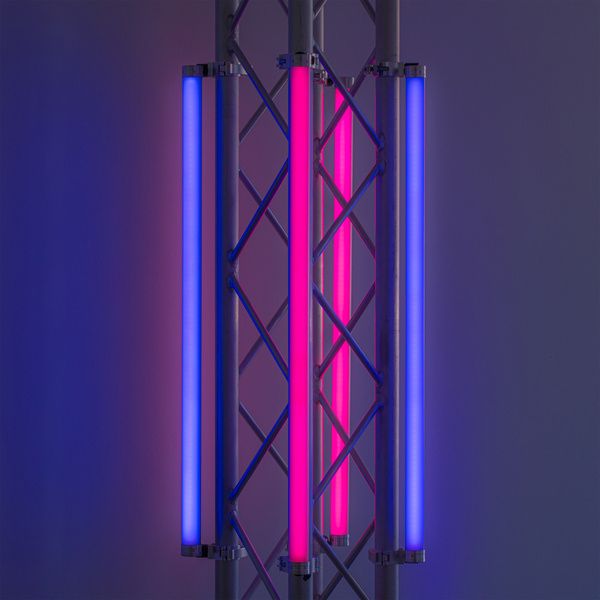

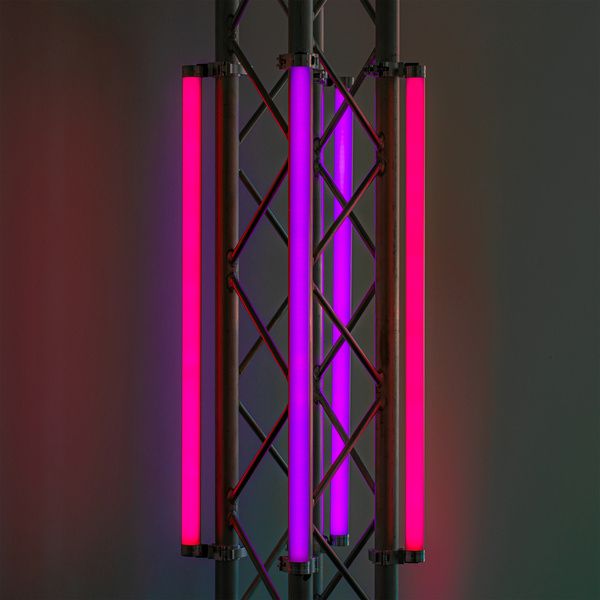

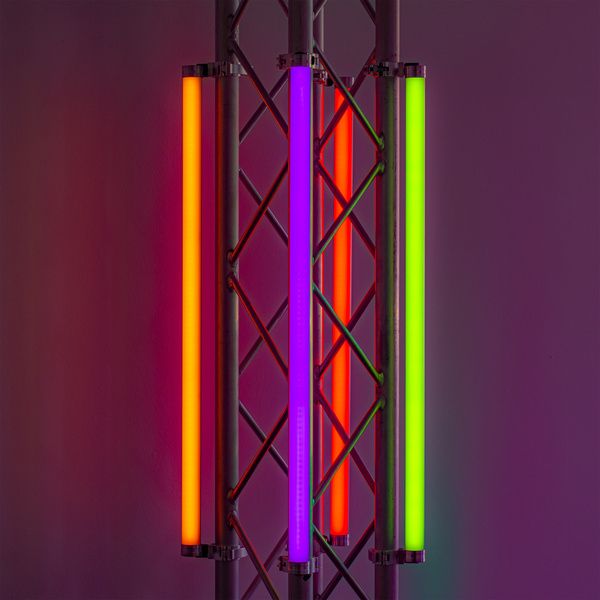

• Truss clamp adapter (570774) for truss mounting (not included)

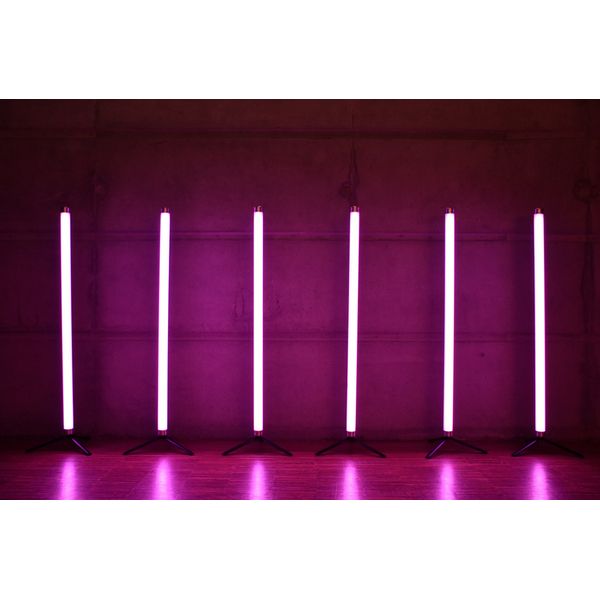

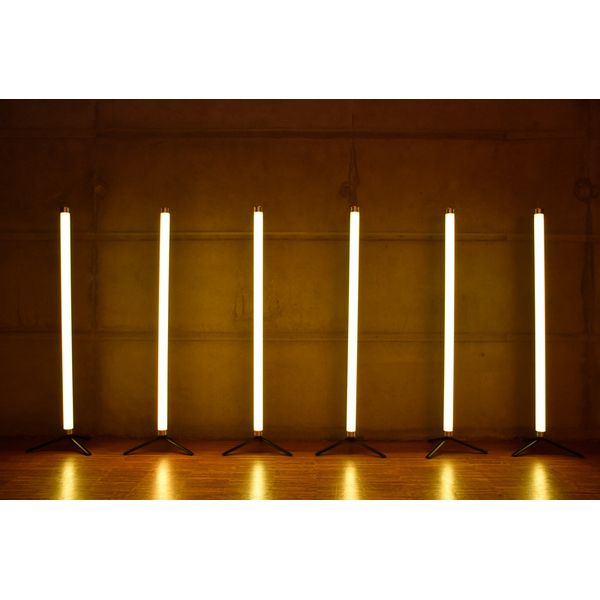

• Tripod stand for vertical placement on the floor: Art. 599869 (not included)
• CONNECT: Art. 522043 or Art. 522044 (not included)

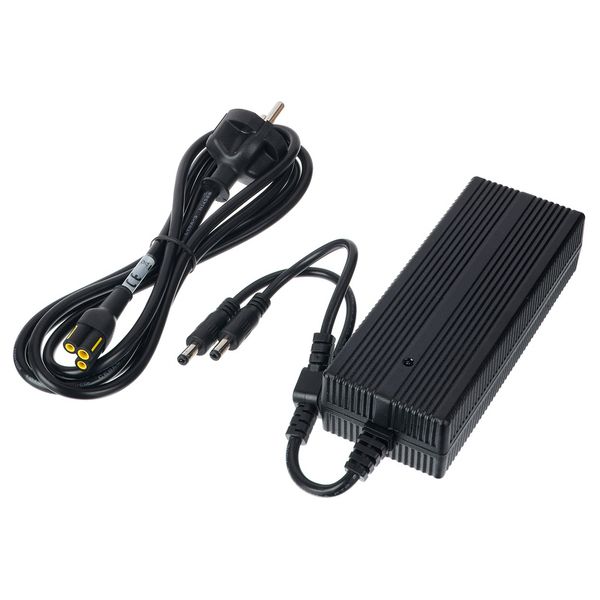

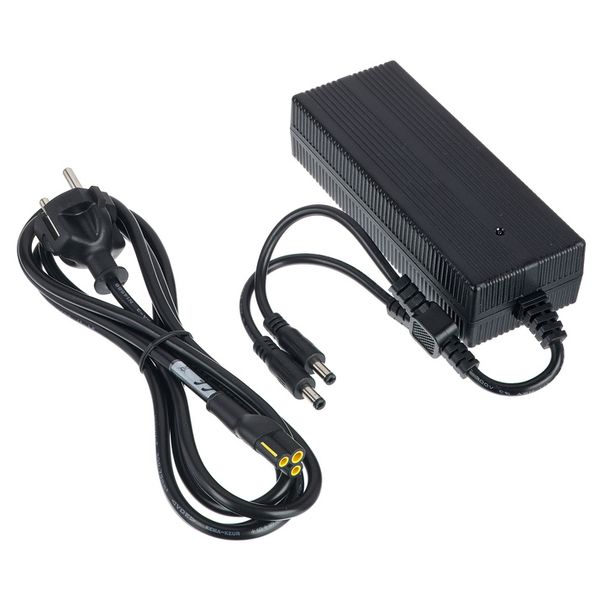

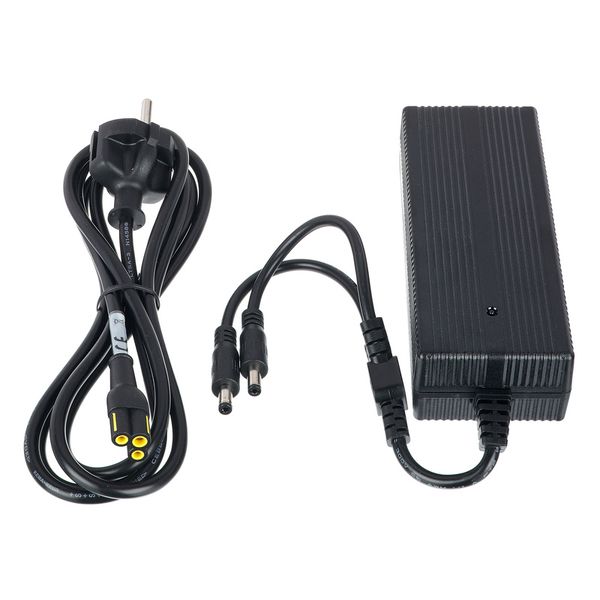

Ape Labs Power Supply 108 Watt DC

Power Supply Unit

• Suitable for LightCan (SE), ApeLight maxi, ApeLight mini, ApeStick 4, MobiLight 4, W-APP, W-APE
• In: 100 - 240 VAC 50/60 Hz
• Out: 18 V - 6 A, 108 W
• Output DC hollow plug: 5.5 x 2.1 mm
• Contents of the delivery: 1 x PSU 120 Watt and mains connection cable

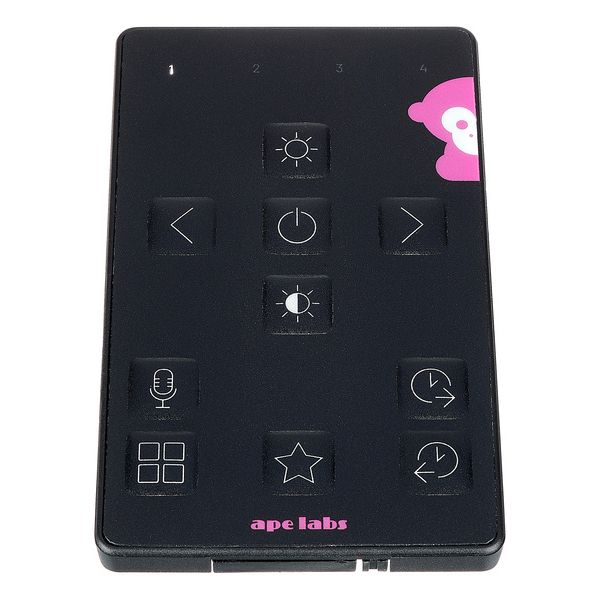

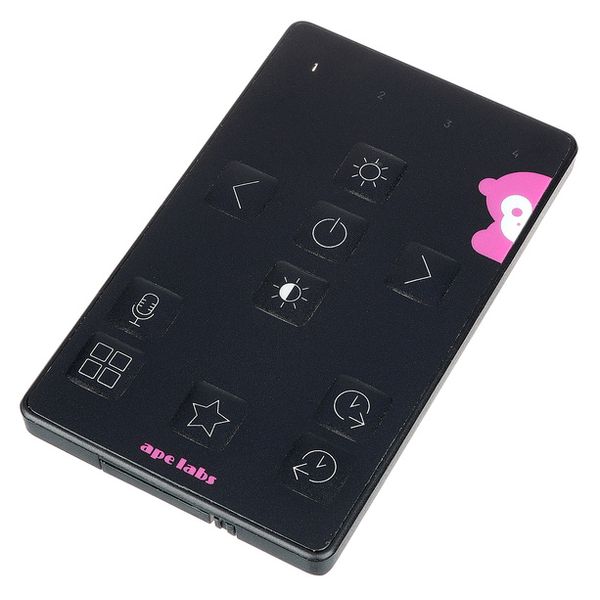

Ape Labs Remote Control V2 Grey

Remote Control

• For all Ape Labs products
• Communicates via radio in the 2.4 GHz band with the Ape Labs lamps
• All Ape Labs products can be divided into 4 groups and then each is controlled synchronously or separately
• 4 Groups management
• Range: 30 m
• Pairing between the remote control and one or more lamps possible (no limit)
• 2.4 GHz (2.400 - 2.485 MHz)
• Dimensions: 8.54 x 5 x 0.6 cm
• Weight: 24 g
• Material: Plastic
• Colour: Anthracite Grey
• Incl. battery (CR2025)
• Made in Germany

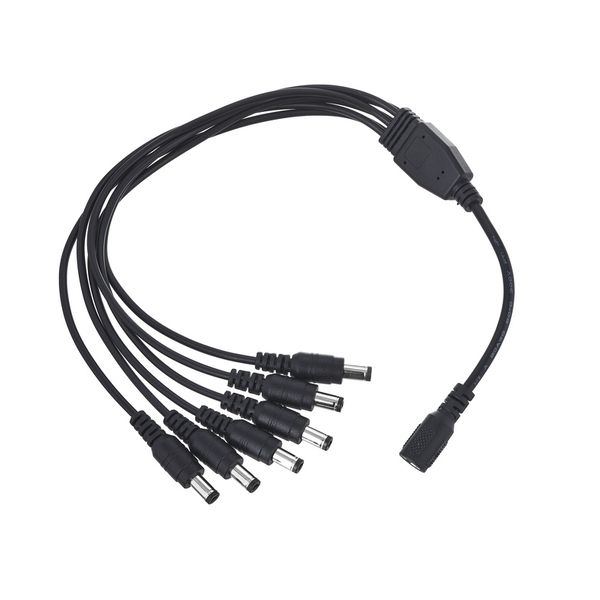

Ape Labs DC 6-Way Splitter

6-Way DC Splitter Cable

• Length: 41 cm
• Weight: 40 g
• Socket and plug DC 5.5 x 2.1 mm
• 1x Female (jack) < - > 6x Male (plug)
• Professional single wire
• Coulded plugs
• Conductor: 100% copper
• Cable colour: Black
